Transport & Handling Equipments

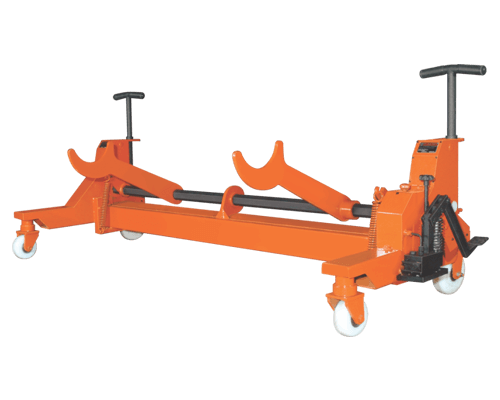

TBL-101Warp Beam Trolley

Ideal for lifting & transporting warp beam from floor & to put it on loom. Available in different width & lifting Capacity.

Inquire Now

TBG-102Warp Beam Trolley with Harness Mounting Arrangement

For lifting single warp beam along with harness frames, warp stop motion serrated bars, drop pins & reed from daw-in stand & to put it on loom. Lifting of beam as well as harness frames will be hydraulic operated. This model is suitable for loom width up to 300 cm & carrying capacity up to 1500 kg.

Inquire Now

TCC- 107 ACloth Roll Doffing Trolley

Ideal trolley for unloading big size of cloth roll from batching motion. Handling cloth roll having diameter up to 1500 mm.

Inquire Now

TBC – 104Cloth Roll Doffing Trolley

For lifting the cloth roll from loom and put it on floor. Suitable for maximum roll dia. up to 600 mm and lifting capacit up to 300 kg.

Inquire Now

TCC- 107Cradle type Cloth Roll Doffing Trolley

Useful for lifting & transporting the big batch (Cloth Roll) from batching motion/off loom’s take-up. Lifting of cloth roll by rigid cradle top. Suitable for cloth roll diameter up to 1250 mm, cloth roll length up to 3000 & lifting capacity up to 2000 kg.

Inquire Now

TPL-106Pile Beam Mounting Trolley

Useful for handling pile beam (Top Beam) for terry towel & furnishing fabric unit. The trolley is ideal for lifting the pile beam from floor & to put it on loom. The lifting operation by heavy duty electro – hydraulic power pack unit. The width of trolley can be adjusted (Narrow/Wide) as per the width of loom. Suitable for loom width from 200 cm to 380 cm.Beam flange diameter from 800 mm to 1250 mm & lifting capacity up to 2500 kg.

Inquire Now

TBE – 105Empty Beam Trolley

To lift & Transport empty warper’s / weaver’s beam (Floor to floor Movement). Suitable for beam flange dia. up to 1250 mm, beam barrel dia. up to 320 mm & beam weight up to 300 kg.

Inquire Now

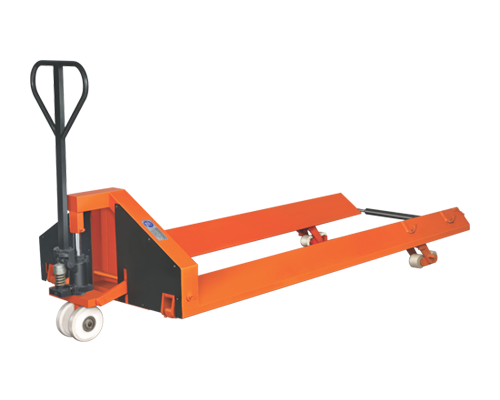

TBP – 108Pallet type Warp Beam Trolley

For easy & smooth movement of warp beam from floor to floor. Suitable for beam width up to 4200 mm, beam flange diameter from 800 to 1400 mm.

Inquire Now

TBD – 111Double beam Carrier with Harness Mounting Arrangement Mounting Trolley

  • Easy Movement and smooth Operations
  • Beam Lifting / Lowering Operation by Electro – Hydraulic Pressure Pump
  • Hydraulic Operations by 6 Nos. Of Cylinders.
  • Adjustable type lifting Levers with swivelling Operations.
  • Manual Lifting –Lowering of Harness Frames, Drop Pins, Serrated Bars.
  • Double Ball Beard white UHMW Nylon Wheels.
  • Suitable for Beam having Flange Dia. From 400 mm to 800 mm (Top Beam ) & 1000 mm (Ground Beam ). Capacity 2000 Kgs.

Inquire Now

TBG – 110Twin Warp Beam Trolley with Harness Mounting Arrangement

Suitable for lifting twin warp beams along with harness frames mounting arrangement Suitable for loom width up 380 cm & carrying up to 2000 kg.
